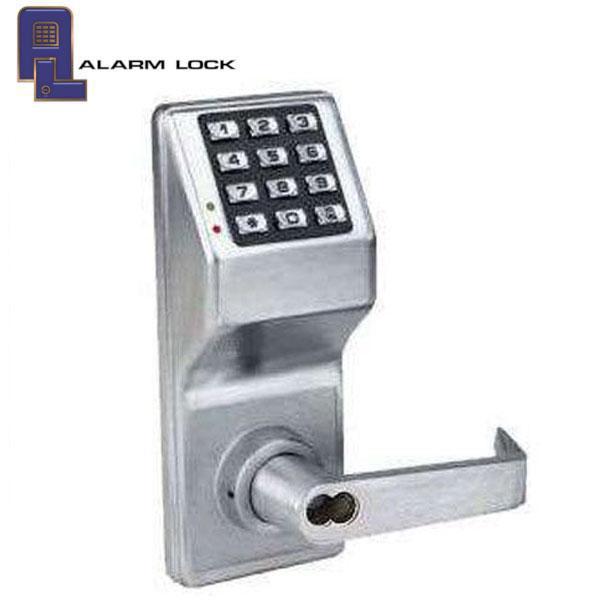

DL2700IC T2 TRILOGY DIGITAL KEYPAD LOCK WITH INTERCHANGEABLE CORE BY ALARM LOCK – 26D

Price: $376.00

10 lbs

Exterior Dimensions: Door Thickness: Fits 1 5/8” to 1 7/8”
Interior Dimensions: Backset: 2 3/4”
Interior Dimensions 2: Strike: 1 1/8”x 2 3/4” T strike & 1 1/4” x 4 7/8. ASA strike included

Available on backorder

SKU: ALLDL2700IC Categories: ,
  • Door Thickness: Fits 1 5/8” to 1 7/8”
  • Backset: 2 3/4”
  • Strike: 1 1/8”x 2 3/4” T strike & 1 1/4” x 4 7/8. ASA strike included
  • Latchbolt: UL Listed, fire rated 3 hours, 1/2” throw reversible
  • Handing: Non-handed
  • Keyway: SC1 Schlage C
  • Grade 1 Durability
  • Power: 5 AA alkaline batteries (included)
  • Keypad: All metal, vandal-proof, 12 button. All functions programmed through keypad.
  • Door prep: Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
  • Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed UL Listed 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
  • Cylinder: 6 pin solid brass, SC1 keyway, furnished with all key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
  • Interchangeable Core Models: Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
  • Warranty – 2 Year Manufacturer
Weight 10 lbs
